Material Handling
Forklift Lithium Battery — 24 V / 48 V / 80 V LiFePO4 Traction Packs
Drop-in replacements for lead-acid traction batteries in counterbalance, reach and pallet trucks. Opportunity charging, 3,500+ cycles, zero watering, and a footprint that matches your existing compartment.
- 24 V · 48 V · 80 V
- 200–600 Ah
- 3,500+ cycles
- Opportunity charging
- Zero maintenance
- UN38.3 · CE · IEC
Why switch
Lead-acid traction batteries are the most expensive part of the shift
Watering, equalising, spare packs, charging rooms with ventilation and hydrogen extraction — all of it disappears with a lithium pack that charges during breaks.
Opportunity charging
Charge in 20–30 minute windows. One battery covers a full shift instead of two or three lead-acid packs.
No maintenance
No water topping, no acid spills, no equalising charges, no battery-room ventilation requirement.
Constant power
Full performance at 20% state of charge — lift speed and travel speed do not fade through the shift.
Energy savings
About 30% less energy per charge cycle and faster charging at high efficiency.
BMS + telematics
CAN bus reporting on SOC, temperature and faults; optional fleet dashboard over Wi-Fi or 4G.
Cold-store capable
Discharge down to −20 °C with heater options for freezer warehouse duty.
Capacities
Forklift Pack Range
| System voltage | Capacity | Energy | Typical lead-acid replaced | Typical truck class |
|---|---|---|---|---|
| 24 V (8S) | 200 Ah | 5.1 kWh | 24 V 300–375 Ah | Pallet trucks, stackers, AGVs |
| 24 V (8S) | 300 Ah | 7.7 kWh | 24 V 450–500 Ah | Electric walkies, tow tractors |
| 48 V (16S) | 300 Ah | 15.4 kWh | 48 V 400–500 Ah | 1.5–2.0 t counterbalance |
| 48 V (16S) | 400 Ah | 20.5 kWh | 48 V 600–700 Ah | 2.0–3.0 t counterbalance |
| 48 V (16S) | 500 Ah | 25.6 kWh | 48 V 750–875 Ah | 3.0–3.5 t reach trucks |
| 80 V (25S) | 400 Ah | 32.0 kWh | 80 V 600–700 Ah | 3.5–5.0 t heavy counterbalance |
| 80 V (25S) | 600 Ah | 48.0 kWh | 80 V 900–1,000 Ah | 5.0 t+ and container handling |
Built with graded 105–230 Ah prismatic cells, steel or steel-composite case matched to the original compartment, and the original connector type. Charger quoted separately (matched high-frequency unit).
Inside the pack
Cell quality decides the total cost of ownership
Gotion cells, matched into packs

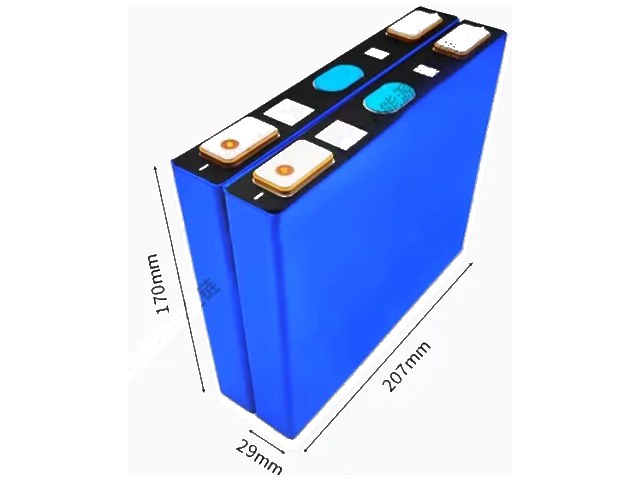

- Gotion High-Tech A-grade prismatic cells (105 Ah, 150 Ah, 230 Ah platforms)
- Capacity and internal resistance sorted so the weakest cell does not limit the pack
- Steel case with forklift-grade vibration protection and IP-rated connectors
- BMS with CAN bus to the truck, plus optional fleet telematics
- Spare BMS boards and cells stocked for after-sales support
Inside our production
Factory & Quality Control

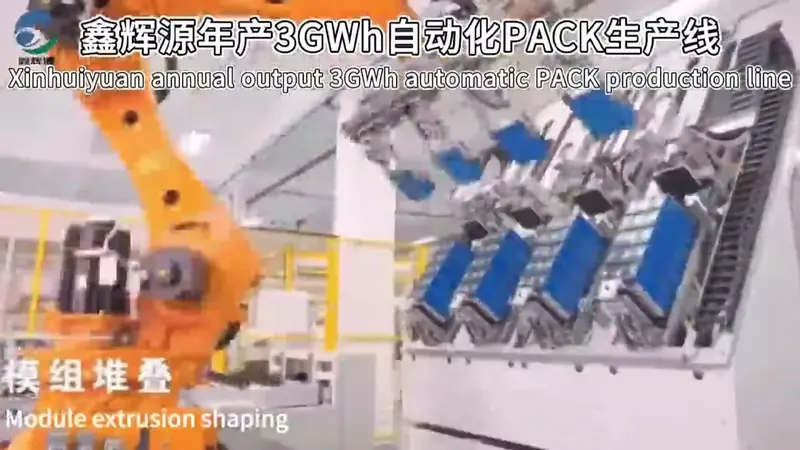

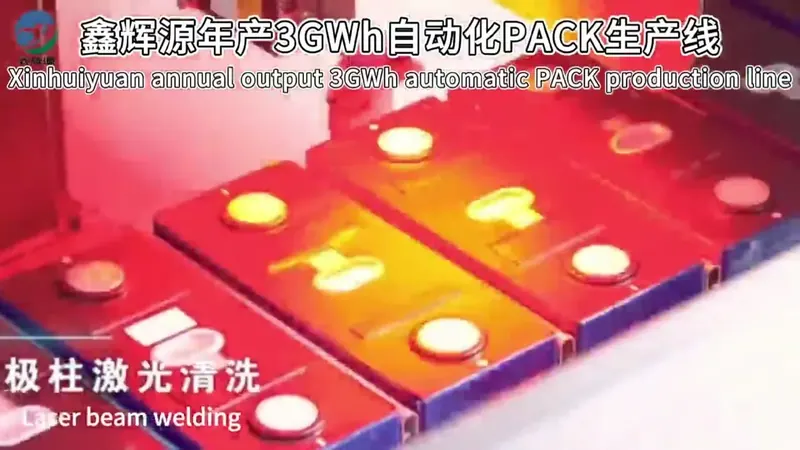

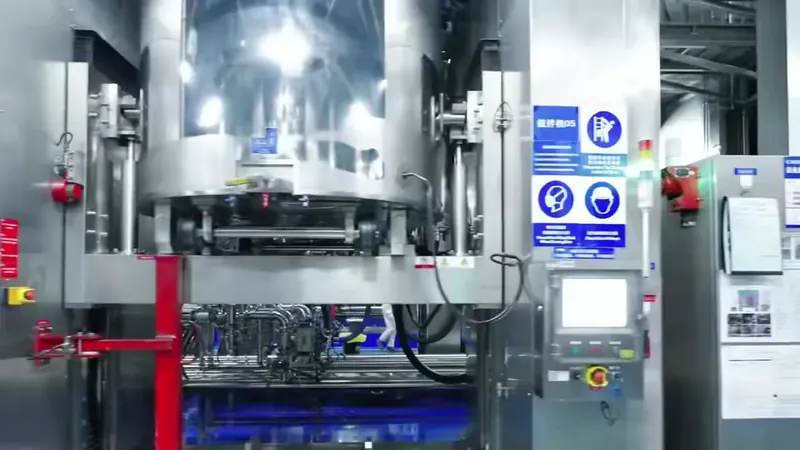

Real shots from our 3 GWh automated PACK production base — the same line every forklift battery passes through: cell inspection, laser welding, module stacking and full OCV testing before shipment.
FAQ
Forklift Lithium Battery — Buyer Questions
Yes — we quote against the lead-acid battery compartment dimensions and counterweight, and supply the same footprint with the correct connector (Anderson / REMA / DIN), so the truck keeps its centre of gravity and stays in balance.
Yes. LiFePO4 accepts opportunity charging — the operator tops up the battery during breaks and lunch instead of swapping a pack. There is no memory effect and no gassing.
3,500 cycles at 80% DOD, typically 8–10 years on one shift per day — compared with 3–5 years for a lead-acid traction battery, with zero watering or equalising.
Generally a lithium pack of 60–70% of the lead-acid Ah rating gives the same runtime, because lithium delivers full capacity at high discharge rates and can be discharged deeper. We simulate duty cycles on request.
Yes — matched high-frequency chargers are quoted with the battery. An existing lead-acid charger cannot be used.
UN38.3, CE, IEC 62619 and a compliance file covering BMS safety functions. Forklift installations also need a site risk assessment, and we supply the documentation package for that.
